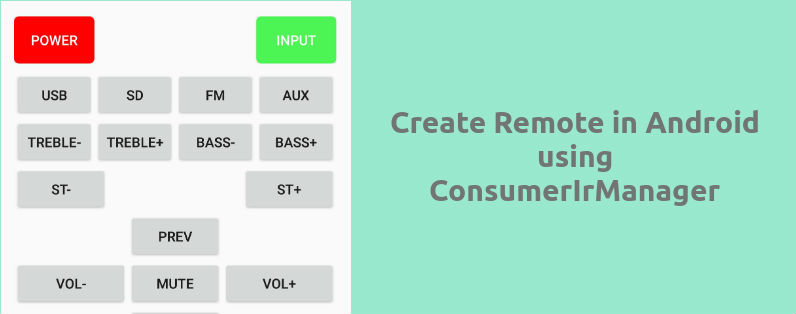

Create Remote in Android using ConsumerIrManager

Post Views: 5,158

Hello friends, today we are going to learn how to create remote in android using ConsumerIrManager. ConsumerIrManager class operates consumer infrared on the device and we’ll use two methods of ConsumerIrManager class hasIrEmitter method to check whether device has infrared emitter or not and transmit method to transmit single/pattern. Actually I have Clarion JM-8201 home theater and I have lost it’s remote and for that reason I was facing difficulties using it and I have tried many apps from playstore but no one worked for me so I decided to develop own remote app. Now I am sharing this code so that anyone else need it can benefit and If anyone have same home theater then s/he can use same code as it is to create their own remote for their home theater.

So, Here is the code

MainActivity.java

package com.zatackcoder.clarionremotejm8201;

import androidx.annotation.RequiresApi;
import androidx.appcompat.app.AppCompatActivity;

import android.hardware.ConsumerIrManager;
import android.os.Build;
import android.os.Bundle;
import android.view.View;
import android.widget.Toast;

public class MainActivity extends AppCompatActivity {

    Integer frequency = 33000;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
    }


    @RequiresApi(api = Build.VERSION_CODES.KITKAT)
    public void handleClick(View view) {
        ConsumerIrManager consumerIrManager = (ConsumerIrManager) getSystemService(CONSUMER_IR_SERVICE);
        if(!consumerIrManager.hasIrEmitter()) {
            Toast.makeText(getApplicationContext(), "IR Emitter Not Found in Your Device", Toast.LENGTH_LONG).show();
            return;
        }
        switch (view.getId()) {
            case R.id.powerB:
                consumerIrManager.transmit(frequency, Btn.POWER);
                break;
            case R.id.inputB:
                consumerIrManager.transmit(frequency, Btn.INPUT);
                break;
            case R.id.usbB:
                consumerIrManager.transmit(frequency, Btn.USB);
                break;
            case R.id.sdB:
                consumerIrManager.transmit(frequency, Btn.SD);
                break;
            case R.id.fmB:
                consumerIrManager.transmit(frequency, Btn.FM);
                break;
            case R.id.auxB:
                consumerIrManager.transmit(frequency, Btn.AUX);
                break;
            case R.id.trebleMinusB:
                consumerIrManager.transmit(frequency, Btn.TREBLE_MINUS);
                break;
            case R.id.treblePlusB:
                consumerIrManager.transmit(frequency, Btn.TREBLE_PLUS);
                break;
            case R.id.bassMinusB:
                consumerIrManager.transmit(frequency, Btn.BASS_MINUS);
                break;
            case R.id.bassPlusB:
                consumerIrManager.transmit(frequency, Btn.BASS_PLUS);
                break;
            case R.id.stMinusB:
                consumerIrManager.transmit(frequency, Btn.ST_MINUS);
                break;
            case R.id.stPlusB:
                consumerIrManager.transmit(frequency, Btn.ST_PLUS);
                break;
            case R.id.prevB:
                consumerIrManager.transmit(frequency, Btn.PREVIOUS);
                break;
            case R.id.volMinusB:
                consumerIrManager.transmit(frequency, Btn.VOL_MINUS);
                break;
            case R.id.nextB:
                consumerIrManager.transmit(frequency, Btn.NEXT);
                break;
            case R.id.volPlusB:
                consumerIrManager.transmit(frequency, Btn.VOL_PLUS);
                break;
            case R.id.muteB:
                consumerIrManager.transmit(frequency, Btn.MUTE);
                break;
            case R.id.ftMinusB:
                consumerIrManager.transmit(frequency, Btn.FT_MINUS);
                break;
            case R.id.ftPlusB:
                consumerIrManager.transmit(frequency, Btn.FT_PLUS);
                break;
            case R.id.num1B:
                consumerIrManager.transmit(frequency, Btn.NUM_1);
                break;
            case R.id.num2B:
                consumerIrManager.transmit(frequency, Btn.NUM_2);
                break;
            case R.id.num3B:
                consumerIrManager.transmit(frequency, Btn.NUM_3);
                break;
            case R.id.num4B:
                consumerIrManager.transmit(frequency, Btn.NUM_4);
                break;
            case R.id.num5B:
                consumerIrManager.transmit(frequency, Btn.NUM_5);
                break;
            case R.id.num6B:
                consumerIrManager.transmit(frequency, Btn.NUM_6);
                break;
            case R.id.num7B:
                consumerIrManager.transmit(frequency, Btn.NUM_7);
                break;
            case R.id.num8B:
                consumerIrManager.transmit(frequency, Btn.NUM_8);
                break;
            case R.id.num9B:
                consumerIrManager.transmit(frequency, Btn.NUM_9);
                break;
            case R.id.num0B:
                consumerIrManager.transmit(frequency, Btn.NUM_0);
                break;
            case R.id.resetB:
                consumerIrManager.transmit(frequency, Btn.RESET);
                break;
            case R.id.searchB:
                consumerIrManager.transmit(frequency, Btn.SEARCH);
                break;
        }
    }
}

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

package com.zatackcoder.clarionremotejm8201;

import androidx.annotation.RequiresApi;

import androidx.appcompat.app.AppCompatActivity;

import android.hardware.ConsumerIrManager;

import android.os.Build;

import android.os.Bundle;

import android.view.View;

import android.widget.Toast;

public class MainActivity extends AppCompatActivity {

Integer frequency = 33000;

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_main);

}

@RequiresApi(api = Build.VERSION_CODES.KITKAT)

public void handleClick(View view) {

ConsumerIrManager consumerIrManager = (ConsumerIrManager) getSystemService(CONSUMER_IR_SERVICE);

if(!consumerIrManager.hasIrEmitter()) {

Toast.makeText(getApplicationContext(), "IR Emitter Not Found in Your Device", Toast.LENGTH_LONG).show();

return;

}

switch (view.getId()) {

case R.id.powerB:

consumerIrManager.transmit(frequency, Btn.POWER);

break;

case R.id.inputB:

consumerIrManager.transmit(frequency, Btn.INPUT);

break;

case R.id.usbB:

consumerIrManager.transmit(frequency, Btn.USB);

break;

case R.id.sdB:

consumerIrManager.transmit(frequency, Btn.SD);

break;

case R.id.fmB:

consumerIrManager.transmit(frequency, Btn.FM);

break;

case R.id.auxB:

consumerIrManager.transmit(frequency, Btn.AUX);

break;

case R.id.trebleMinusB:

consumerIrManager.transmit(frequency, Btn.TREBLE_MINUS);

break;

case R.id.treblePlusB:

consumerIrManager.transmit(frequency, Btn.TREBLE_PLUS);

break;

case R.id.bassMinusB:

consumerIrManager.transmit(frequency, Btn.BASS_MINUS);

break;

case R.id.bassPlusB:

consumerIrManager.transmit(frequency, Btn.BASS_PLUS);

break;

case R.id.stMinusB:

consumerIrManager.transmit(frequency, Btn.ST_MINUS);

break;

case R.id.stPlusB:

consumerIrManager.transmit(frequency, Btn.ST_PLUS);

break;

case R.id.prevB:

consumerIrManager.transmit(frequency, Btn.PREVIOUS);

break;

case R.id.volMinusB:

consumerIrManager.transmit(frequency, Btn.VOL_MINUS);

break;

case R.id.nextB:

consumerIrManager.transmit(frequency, Btn.NEXT);

break;

case R.id.volPlusB:

consumerIrManager.transmit(frequency, Btn.VOL_PLUS);

break;

case R.id.muteB:

consumerIrManager.transmit(frequency, Btn.MUTE);

break;

case R.id.ftMinusB:

consumerIrManager.transmit(frequency, Btn.FT_MINUS);

break;

case R.id.ftPlusB:

consumerIrManager.transmit(frequency, Btn.FT_PLUS);

break;

case R.id.num1B:

consumerIrManager.transmit(frequency, Btn.NUM_1);

break;

case R.id.num2B:

consumerIrManager.transmit(frequency, Btn.NUM_2);

break;

case R.id.num3B:

consumerIrManager.transmit(frequency, Btn.NUM_3);

break;

case R.id.num4B:

consumerIrManager.transmit(frequency, Btn.NUM_4);

break;

case R.id.num5B:

consumerIrManager.transmit(frequency, Btn.NUM_5);

break;

case R.id.num6B:

consumerIrManager.transmit(frequency, Btn.NUM_6);

break;

case R.id.num7B:

consumerIrManager.transmit(frequency, Btn.NUM_7);

break;

case R.id.num8B:

consumerIrManager.transmit(frequency, Btn.NUM_8);

break;

case R.id.num9B:

consumerIrManager.transmit(frequency, Btn.NUM_9);

break;

case R.id.num0B:

consumerIrManager.transmit(frequency, Btn.NUM_0);

break;

case R.id.resetB:

consumerIrManager.transmit(frequency, Btn.RESET);

break;

case R.id.searchB:

consumerIrManager.transmit(frequency, Btn.SEARCH);

break;

}

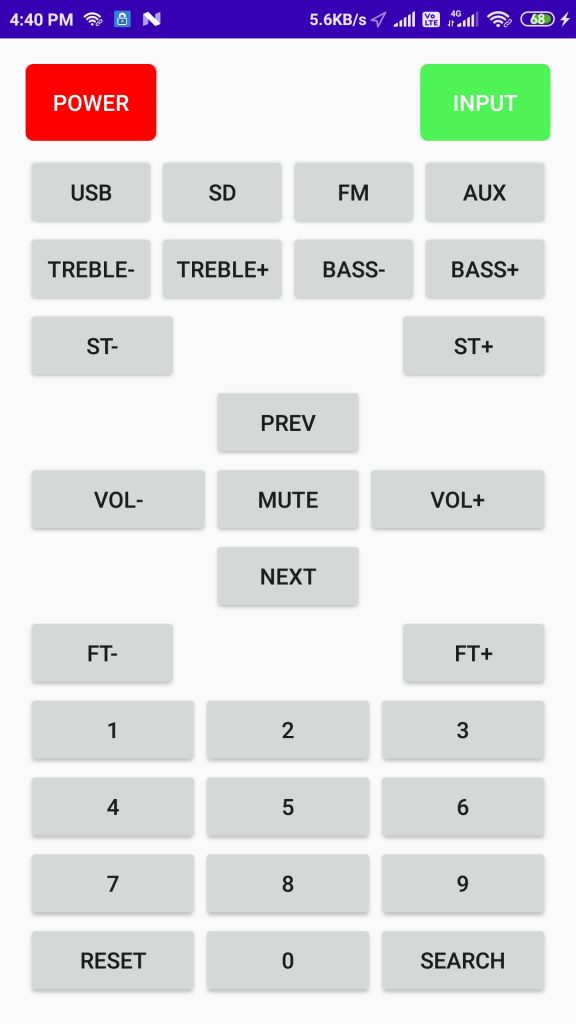

activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    android:padding="16dp"
    android:weightSum="100"
    tools:context=".MainActivity">

    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_marginBottom="8dp"
        android:layout_weight="8"
        android:orientation="horizontal">

        <Button
            android:id="@+id/powerB"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:layout_weight="1"
            android:background="@drawable/ic_btn_round_red"
            android:onClick="handleClick"
            android:text="Power"
            android:textColor="#FFF" />

        <View
            android:layout_width="wrap_content"
            android:layout_height="1dp"
            android:layout_weight="25" />

        <Button
            android:id="@+id/inputB"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:layout_weight="1"
            android:background="@drawable/ic_btn_round_green"
            android:onClick="handleClick"
            android:text="Input"
            android:textColor="#FFF" />

    </LinearLayout>

    <LinearLayout
        android:id="@+id/linearLayout"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_weight="16"
        android:orientation="vertical">

        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:layout_margin="0dp"
            android:orientation="horizontal">

            <Button
                android:id="@+id/usbB"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_weight="1"
                android:onClick="handleClick"
                android:text="USB" />

            <Button
                android:id="@+id/sdB"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_weight="1"
                android:onClick="handleClick"
                android:text="SD" />

            <Button
                android:id="@+id/fmB"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_weight="1"
                android:onClick="handleClick"
                android:text="FM" />

            <Button
                android:id="@+id/auxB"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_weight="1"
                android:onClick="handleClick"
                android:text="AUX" />

        </LinearLayout>

        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:layout_margin="0dp"
            android:orientation="horizontal">

            <Button
                android:id="@+id/trebleMinusB"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_weight="1"
                android:onClick="handleClick"
                android:text="TREBLE-" />

            <Button
                android:id="@+id/treblePlusB"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_weight="1"
                android:onClick="handleClick"
                android:text="TREBLE+" />

            <Button
                android:id="@+id/bassMinusB"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_weight="1"
                android:onClick="handleClick"
                android:text="BASS-" />

            <Button
                android:id="@+id/bassPlusB"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_weight="1"
                android:onClick="handleClick"
                android:text="BASS+" />

        </LinearLayout>

    </LinearLayout>

    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_weight="40"
        android:gravity="center">

        <GridLayout
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:columnCount="3"
            android:rowCount="5">

            <Button
                android:id="@+id/stMinusB"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_row="0"
                android:layout_column="0"
                android:layout_columnWeight="1"
                android:layout_marginRight="20dp"
                android:onClick="handleClick"
                android:text="ST-" />

            <Button
                android:id="@+id/stPlusB"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_row="0"
                android:layout_column="2"
                android:layout_columnWeight="1"
                android:layout_marginLeft="20dp"
                android:onClick="handleClick"
                android:text="ST+" />

            <Button
                android:id="@+id/prevB"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_row="1"
                android:layout_column="1"
                android:layout_columnWeight="1"
                android:onClick="handleClick"
                android:text="PREV" />

            <Button
                android:id="@+id/volMinusB"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_row="2"
                android:layout_column="0"
                android:layout_columnWeight="1"
                android:onClick="handleClick"
                android:text="VOL-" />

            <Button
                android:id="@+id/nextB"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_row="3"
                android:layout_column="1"
                android:layout_columnWeight="1"
                android:onClick="handleClick"
                android:text="NEXT" />

            <Button
                android:id="@+id/volPlusB"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_row="2"
                android:layout_column="2"
                android:layout_columnWeight="1"
                android:onClick="handleClick"
                android:text="VOL+" />

            <Button
                android:id="@+id/muteB"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_row="2"
                android:layout_column="1"
                android:layout_columnWeight="1"
                android:onClick="handleClick"
                android:text="MUTE" />

            <Button
                android:id="@+id/ftMinusB"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_row="4"
                android:layout_column="0"
                android:layout_columnWeight="1"
                android:layout_marginRight="20dp"
                android:onClick="handleClick"
                android:text="FT-" />

            <Button
                android:id="@+id/ftPlusB"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_row="4"
                android:layout_column="2"
                android:layout_columnWeight="1"
                android:layout_marginLeft="20dp"
                android:onClick="handleClick"
                android:text="FT+" />

        </GridLayout>

    </LinearLayout>

    <LinearLayout
        android:id="@+id/numbersLL"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_weight="32"
        android:gravity="bottom"
        android:orientation="vertical">

        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:orientation="horizontal">

            <Button
                android:id="@+id/num1B"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_weight="1"
                android:onClick="handleClick"
                android:text="1" />

            <Button
                android:id="@+id/num2B"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_weight="1"
                android:onClick="handleClick"
                android:text="2" />

            <Button
                android:id="@+id/num3B"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_weight="1"
                android:onClick="handleClick"
                android:text="3" />

        </LinearLayout>

        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:orientation="horizontal">

            <Button
                android:id="@+id/num4B"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_weight="1"
                android:onClick="handleClick"
                android:text="4" />

            <Button
                android:id="@+id/num5B"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_weight="1"
                android:onClick="handleClick"
                android:text="5" />

            <Button
                android:id="@+id/num6B"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_weight="1"
                android:onClick="handleClick"
                android:text="6" />

        </LinearLayout>

        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:orientation="horizontal">

            <Button
                android:id="@+id/num7B"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_weight="1"
                android:onClick="handleClick"
                android:text="7" />

            <Button
                android:id="@+id/num8B"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_weight="1"
                android:onClick="handleClick"
                android:text="8" />

            <Button
                android:id="@+id/num9B"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_weight="1"
                android:onClick="handleClick"
                android:text="9" />

        </LinearLayout>

        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:orientation="horizontal">

            <Button
                android:id="@+id/resetB"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_weight="1"
                android:onClick="handleClick"
                android:text="Reset" />

            <Button
                android:id="@+id/num0B"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_weight="1"
                android:onClick="handleClick"
                android:text="0" />

            <Button
                android:id="@+id/searchB"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_weight="1"
                android:onClick="handleClick"
                android:text="Search" />

        </LinearLayout>

    </LinearLayout>

</LinearLayout>

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

248

249

250

251

252

253

254

255

256

257

258

259

260

261

262

263

264

265

266

267

268

269

270

271

272

273

274

275

276

277

278

279

280

281

282

283

284

285

286

287

288

289

290

291

292

293

294

295

296

297

298

299

300

301

302

303

304

305

306

307

308

309

310

311

312

313

314

315

316

317

318

319

320

321

322

323

324

325

326

327

328

329

330

331

332

333

334

335

336

337

338

339

340

341

342

343

344

345

346

347

348

349

350

351

352

353

354

355

356

357

358

359

360

361

362

363

364

365

366

367

368

369

370

371

372

373

374

375

376

377

378

<?xml version="1.0" encoding="utf-8"?>

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"

xmlns:tools="http://schemas.android.com/tools"

android:layout_width="match_parent"

android:layout_height="match_parent"

android:orientation="vertical"

android:padding="16dp"

android:weightSum="100"

tools:context=".MainActivity">

<LinearLayout

android:layout_width="match_parent"

android:layout_height="wrap_content"

android:layout_marginBottom="8dp"

android:layout_weight="8"

android:orientation="horizontal">

<Button

android:id="@+id/powerB"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_weight="1"

android:background="@drawable/ic_btn_round_red"

android:onClick="handleClick"

android:text="Power"

android:textColor="#FFF" />

<View

android:layout_width="wrap_content"

android:layout_height="1dp"

android:layout_weight="25" />

<Button

android:id="@+id/inputB"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_weight="1"

android:background="@drawable/ic_btn_round_green"

android:onClick="handleClick"

android:text="Input"

android:textColor="#FFF" />

</LinearLayout>

<LinearLayout

android:id="@+id/linearLayout"

android:layout_width="match_parent"

android:layout_height="wrap_content"

android:layout_weight="16"

android:orientation="vertical">

<LinearLayout

android:layout_width="match_parent"

android:layout_height="wrap_content"

android:layout_margin="0dp"

android:orientation="horizontal">

<Button

android:id="@+id/usbB"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_weight="1"

android:onClick="handleClick"

android:text="USB" />

<Button

android:id="@+id/sdB"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_weight="1"

android:onClick="handleClick"

android:text="SD" />

<Button

android:id="@+id/fmB"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_weight="1"

android:onClick="handleClick"

android:text="FM" />

<Button

android:id="@+id/auxB"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_weight="1"

android:onClick="handleClick"

android:text="AUX" />

</LinearLayout>

<LinearLayout

android:layout_width="match_parent"

android:layout_height="wrap_content"

android:layout_margin="0dp"

android:orientation="horizontal">

<Button

android:id="@+id/trebleMinusB"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_weight="1"

android:onClick="handleClick"

android:text="TREBLE-" />

<Button

android:id="@+id/treblePlusB"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_weight="1"

android:onClick="handleClick"

android:text="TREBLE+" />

<Button

android:id="@+id/bassMinusB"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_weight="1"

android:onClick="handleClick"

android:text="BASS-" />

<Button

android:id="@+id/bassPlusB"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_weight="1"

android:onClick="handleClick"

android:text="BASS+" />

</LinearLayout>

<LinearLayout

android:layout_width="match_parent"

android:layout_height="wrap_content"

android:layout_weight="40"

android:gravity="center">

<GridLayout

android:layout_width="match_parent"

android:layout_height="wrap_content"

android:columnCount="3"

android:rowCount="5">

<Button

android:id="@+id/stMinusB"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_row="0"

android:layout_column="0"

android:layout_columnWeight="1"

android:layout_marginRight="20dp"

android:onClick="handleClick"

android:text="ST-" />

<Button

android:id="@+id/stPlusB"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_row="0"

android:layout_column="2"

android:layout_columnWeight="1"

android:layout_marginLeft="20dp"

android:onClick="handleClick"

android:text="ST+" />

<Button

android:id="@+id/prevB"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_row="1"

android:layout_column="1"

android:layout_columnWeight="1"

android:onClick="handleClick"

android:text="PREV" />

<Button

android:id="@+id/volMinusB"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_row="2"

android:layout_column="0"

android:layout_columnWeight="1"

android:onClick="handleClick"

android:text="VOL-" />

<Button

android:id="@+id/nextB"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_row="3"

android:layout_column="1"

android:layout_columnWeight="1"

android:onClick="handleClick"

android:text="NEXT" />

<Button

android:id="@+id/volPlusB"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_row="2"

android:layout_column="2"

android:layout_columnWeight="1"

android:onClick="handleClick"

android:text="VOL+" />

<Button

android:id="@+id/muteB"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_row="2"

android:layout_column="1"

android:layout_columnWeight="1"

android:onClick="handleClick"

android:text="MUTE" />

<Button

android:id="@+id/ftMinusB"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_row="4"

android:layout_column="0"

android:layout_columnWeight="1"

android:layout_marginRight="20dp"

android:onClick="handleClick"

android:text="FT-" />

<Button

android:id="@+id/ftPlusB"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_row="4"

android:layout_column="2"

android:layout_columnWeight="1"

android:layout_marginLeft="20dp"

android:onClick="handleClick"

android:text="FT+" />

</GridLayout>

</LinearLayout>

<LinearLayout

android:id="@+id/numbersLL"

android:layout_width="match_parent"

android:layout_height="wrap_content"

android:layout_weight="32"

android:gravity="bottom"

android:orientation="vertical">

<LinearLayout

android:layout_width="match_parent"

android:layout_height="wrap_content"

android:orientation="horizontal">

<Button

android:id="@+id/num1B"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_weight="1"

android:onClick="handleClick"

android:text="1" />

<Button

android:id="@+id/num2B"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_weight="1"

android:onClick="handleClick"

android:text="2" />

<Button

android:id="@+id/num3B"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_weight="1"

android:onClick="handleClick"

android:text="3" />

</LinearLayout>

<LinearLayout

android:layout_width="match_parent"

android:layout_height="wrap_content"

android:orientation="horizontal">

<Button

android:id="@+id/num4B"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_weight="1"

android:onClick="handleClick"

android:text="4" />

<Button

android:id="@+id/num5B"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_weight="1"

android:onClick="handleClick"

android:text="5" />

<Button

android:id="@+id/num6B"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_weight="1"

android:onClick="handleClick"

android:text="6" />

</LinearLayout>

<LinearLayout

android:layout_width="match_parent"

android:layout_height="wrap_content"

android:orientation="horizontal">

<Button

android:id="@+id/num7B"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_weight="1"

android:onClick="handleClick"

android:text="7" />

<Button

android:id="@+id/num8B"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_weight="1"

android:onClick="handleClick"

android:text="8" />

<Button

android:id="@+id/num9B"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_weight="1"

android:onClick="handleClick"

android:text="9" />

</LinearLayout>

<LinearLayout

android:layout_width="match_parent"

android:layout_height="wrap_content"

android:orientation="horizontal">

<Button

android:id="@+id/resetB"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_weight="1"

android:onClick="handleClick"

android:text="Reset" />

<Button

android:id="@+id/num0B"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_weight="1"

android:onClick="handleClick"

android:text="0" />

<Button

android:id="@+id/searchB"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_weight="1"

android:onClick="handleClick"

android:text="Search" />

</LinearLayout>

Btn.java

package com.zatackcoder.clarionremotejm8201;

public final class Btn {
    public static int[] POWER = {9000, 4450, 550, 600, 500, 600, 550, 600, 550, 550, 550, 600, 500, 600, 550, 1700, 550, 550, 550, 600, 550, 550, 550, 600, 550, 550, 550, 600, 550, 550, 550, 1700, 550, 600, 550, 1700, 550, 550, 550, 1700, 550, 1700, 550, 550, 550, 600, 550, 1700, 550, 550, 550, 600, 550, 1650, 600, 550, 550, 550, 600, 1650, 550, 1700, 550, 600, 550, 1700, 550};
    public static int[] INPUT = {9050, 4450, 600, 550, 550, 550, 600, 550, 550, 550, 600, 550, 550, 550, 600, 1650, 550, 600, 550, 550, 550, 600, 500, 600, 550, 600, 550, 550, 550, 600, 550, 1700, 550, 550, 550, 1700, 550, 1700, 550, 550, 600, 550, 550, 550, 550, 600, 550, 1700, 550, 550, 550, 600, 550, 550, 550, 1700, 550, 1700, 550, 1700, 550, 1700, 550, 550, 550, 1700, 550};
    public static int[] USB = {8950, 4500, 600, 550, 550, 550, 550, 600, 550, 550, 550, 600, 500, 600, 550, 1700, 550, 600, 550, 550, 550, 600, 550, 550, 550, 600, 550, 550, 550, 600, 550, 1650, 600, 550, 550, 1700, 550, 1700, 550, 550, 550, 600, 500, 1700, 600, 550, 550, 1600, 650, 550, 550, 600, 550, 550, 600, 1650, 550, 1700, 550, 600, 550, 1700, 550, 550, 550, 1700, 550};
    public static int[] SD = {9000, 4450, 600, 550, 550, 550, 550, 600, 550, 550, 550, 600, 550, 550, 550, 1700, 550, 600, 500, 600, 550, 600, 500, 600, 550, 600, 550, 550, 550, 600, 500, 1750, 550, 550, 550, 1700, 550, 1700, 550, 550, 550, 1700, 550, 1700, 550, 600, 550, 1700, 550, 550, 550, 550, 550, 600, 550, 1700, 550, 550, 550, 600, 550, 1700, 550, 550, 550, 1700, 550};
    public static int[] FM = {8950, 4500, 550, 600, 500, 600, 550, 600, 550, 550, 550, 600, 550, 550, 550, 1700, 550, 600, 550, 550, 550, 600, 550, 550, 550, 600, 500, 600, 550, 550, 600, 1650, 600, 550, 550, 1700, 550, 1700, 550, 1700, 500, 600, 550, 1700, 550, 550, 550, 1700, 550, 600, 550, 550, 550, 600, 550, 550, 550, 1700, 550, 600, 550, 1700, 550, 550, 550, 1700, 550};
    public static int[] AUX = {9000, 4500, 550, 550, 550, 600, 550, 550, 550, 600, 500, 600, 550, 600, 550, 1650, 550, 600, 550, 550, 600, 550, 550, 550, 550, 600, 550, 550, 600, 550, 550, 1700, 550, 550, 550, 600, 500, 600, 550, 1700, 550, 600, 550, 1700, 500, 600, 550, 1700, 550, 550, 550, 1700, 550, 1700, 550, 600, 500, 1750, 550, 550, 550, 1700, 550, 550, 550, 1700, 600};
    public static int[] TREBLE_MINUS = {9000, 4500, 550, 550, 550, 600, 500, 600, 550, 600, 500, 600, 550, 600, 550, 1700, 550, 550, 550, 550, 550, 600, 550, 550, 550, 600, 550, 550, 600, 550, 550, 1700, 550, 550, 550, 600, 550, 550, 550, 1700, 550, 1700, 550, 1700, 550, 550, 550, 600, 550, 550, 550, 1700, 550, 1700, 550, 600, 500, 600, 550, 600, 500, 1750, 500, 1750, 500, 1700, 600};
    public static int[] TREBLE_PLUS = {8950, 4500, 600, 550, 550, 550, 600, 550, 550, 550, 600, 550, 500, 600, 550, 1700, 550, 600, 500, 600, 550, 600, 500, 600, 550, 600, 500, 600, 550, 600, 500, 1750, 500, 600, 550, 600, 500, 1700, 600, 1650, 550, 1700, 550, 1700, 550, 600, 500, 600, 550, 600, 500, 1750, 550, 550, 550, 550, 550, 600, 550, 550, 600, 1650, 600, 1650, 550, 1700, 550};
    public static int[] BASS_MINUS = {9000, 4500, 550, 550, 550, 600, 550, 550, 550, 600, 550, 550, 550, 600, 550, 1700, 550, 550, 550, 600, 550, 550, 550, 600, 500, 600, 550, 600, 550, 550, 550, 1700, 550, 550, 600, 1650, 550, 1700, 550, 1700, 550, 1700, 550, 1700, 550, 600, 550, 550, 550, 550, 600, 550, 550, 550, 600, 550, 550, 550, 600, 550, 550, 1700, 550, 1700, 550, 1700, 550};
    public static int[] BASS_PLUS = {9000, 4500, 550, 550, 550, 600, 550, 550, 550, 600, 550, 550, 550, 600, 550, 1700, 550, 550, 550, 600, 500, 600, 550, 600, 550, 550, 550, 550, 600, 550, 550, 1700, 550, 550, 550, 1700, 550, 600, 550, 1700, 550, 550, 550, 1700, 550, 600, 500, 600, 550, 600, 500, 600, 550, 1700, 550, 550, 550, 1700, 550, 600, 500, 1750, 550, 1700, 550, 1650, 600};
    public static int[] PREVIOUS = {9000, 4500, 550, 550, 550, 550, 600, 550, 550, 550, 550, 600, 550, 550, 550, 1700, 550, 600, 550, 550, 550, 600, 550, 550, 550, 600, 500, 600, 550, 550, 600, 1650, 600, 550, 550, 1700, 550, 1700, 550, 550, 550, 1700, 550, 550, 550, 600, 550, 550, 600, 550, 550, 550, 550, 600, 550, 1700, 550, 550, 550, 1700, 550, 1700, 550, 1700, 500, 1750, 550};
    public static int[] NEXT = {9000, 4500, 550, 550, 550, 600, 500, 600, 550, 600, 550, 550, 550, 600, 550, 1700, 550, 550, 550, 550, 550, 600, 550, 550, 600, 550, 550, 550, 600, 550, 550, 1700, 550, 550, 550, 600, 500, 1750, 550, 1700, 550, 1650, 600, 550, 550, 550, 550, 600, 550, 550, 550, 1700, 550, 600, 500, 600, 550, 600, 550, 1650, 600, 1650, 550, 1700, 550, 1700, 550};
    public static int[] VOL_MINUS = {8950, 4500, 550, 550, 600, 550, 550, 550, 600, 550, 550, 550, 550, 600, 550, 1700, 550, 550, 550, 600, 550, 550, 550, 600, 500, 600, 550, 600, 550, 550, 550, 1700, 550, 550, 550, 600, 550, 550, 550, 600, 500, 600, 550, 1700, 550, 600, 550, 550, 550, 600, 500, 1700, 600, 1650, 550, 1650, 600, 1700, 550, 600, 550, 1650, 600, 1650, 600, 1650, 550};
    public static int[] VOL_PLUS = {8950, 4500, 550, 600, 500, 600, 550, 550, 550, 600, 550, 550, 600, 550, 550, 1700, 550, 550, 550, 600, 500, 600, 550, 600, 500, 600, 550, 600, 550, 550, 550, 1700, 550, 550, 550, 1700, 550, 600, 500, 600, 550, 600, 550, 1700, 550, 550, 550, 600, 500, 600, 550, 600, 500, 1700, 550, 1700, 600, 1650, 550, 600, 550, 1700, 500, 1700, 600, 1650, 600};
    public static int[] MUTE = {9000, 4450, 550, 600, 500, 600, 550, 600, 550, 550, 550, 600, 500, 600, 550, 1700, 550, 550, 550, 600, 550, 550, 550, 600, 550, 550, 550, 600, 500, 600, 550, 1700, 550, 550, 550, 1700, 550, 600, 550, 1700, 550, 1700, 550, 550, 550, 600, 550, 550, 550, 550, 550, 600, 550, 1700, 550, 550, 550, 600, 550, 1700, 550, 1700, 550, 1650, 550, 1700, 550};
    public static int[] ST_MINUS = {8950, 4500, 550, 600, 550, 550, 550, 550, 550, 600, 550, 550, 550, 600, 550, 1700, 500, 600, 550, 600, 500, 600, 550, 600, 550, 550, 550, 600, 500, 600, 550, 1700, 550, 550, 550, 600, 550, 1700, 550, 550, 550, 1700, 550, 1700, 550, 600, 500, 600, 550, 550, 600, 1650, 600, 550, 550, 1700, 550, 550, 550, 600, 550, 1700, 550, 1650, 600, 1650, 550};
    public static int[] ST_PLUS = {8950, 4500, 550, 600, 500, 600, 600, 550, 500, 600, 550, 600, 550, 550, 550, 1700, 550, 600, 550, 550, 550, 600, 550, 550, 550, 550, 600, 550, 550, 550, 600, 1650, 550, 600, 550, 550, 600, 1650, 600, 550, 500, 600, 550, 600, 500, 600, 550, 1700, 550, 550, 550, 1700, 550, 600, 500, 1750, 550, 1700, 550, 1700, 500, 1700, 600, 550, 550, 1700, 550};
    public static int[] FT_MINUS = {9000, 4500, 550, 600, 550, 550, 550, 600, 550, 550, 550, 600, 550, 550, 550, 1700, 550, 600, 500, 600, 550, 600, 550, 550, 550, 600, 500, 600, 550, 600, 500, 1750, 550, 550, 550, 1700, 550, 550, 600, 1650, 600, 550, 550, 550, 600, 550, 550, 1700, 550, 550, 550, 600, 550, 1700, 550, 550, 550, 1700, 550, 1700, 550, 1700, 550, 600, 550, 1700, 550};
    public static int[] FT_PLUS = {9000, 4500, 550, 550, 550, 600, 500, 600, 550, 600, 550, 550, 550, 600, 550, 1700, 550, 550, 550, 600, 500, 600, 550, 600, 550, 550, 550, 600, 550, 550, 550, 1700, 550, 600, 550, 550, 550, 600, 550, 1700, 550, 550, 550, 600, 550, 550, 550, 1700, 550, 600, 550, 1700, 550, 1650, 600, 550, 550, 1700, 550, 1700, 550, 1650, 600, 550, 550, 1700, 550};
    public static int[] NUM_1 = {9000, 4500, 550, 600, 500, 600, 550, 600, 500, 600, 550, 600, 500, 600, 550, 1700, 550, 600, 500, 600, 550, 600, 500, 600, 550, 600, 500, 600, 550, 600, 500, 1750, 550, 550, 550, 1700, 550, 600, 500, 600, 550, 600, 500, 600, 550, 600, 500, 600, 550, 600, 500, 600, 600, 1650, 550, 1700, 550, 1700, 550, 1700, 550, 1700, 550, 1700, 550, 1700, 550};
    public static int[] NUM_2 = {9000, 4500, 600, 550, 550, 550, 550, 600, 550, 550, 600, 550, 550, 600, 500, 1700, 600, 550, 550, 550, 550, 600, 550, 600, 500, 600, 550, 600, 550, 550, 550, 1700, 550, 600, 500, 600, 550, 1700, 550, 600, 550, 550, 550, 600, 500, 600, 550, 600, 550, 550, 550, 1700, 550, 600, 500, 1750, 550, 1700, 500, 1750, 500, 1750, 500, 1700, 550, 1700, 550};
    public static int[] NUM_3 = {9050, 4500, 550, 550, 550, 600, 500, 600, 550, 600, 500, 600, 550, 600, 500, 1750, 500, 600, 550, 600, 500, 600, 550, 600, 500, 600, 550, 600, 500, 600, 550, 1700, 550, 600, 500, 1750, 550, 1700, 500, 600, 550, 600, 500, 600, 550, 600, 500, 600, 550, 600, 500, 600, 550, 600, 500, 1750, 500, 1750, 550, 1700, 500, 1750, 500, 1750, 500, 1750, 500};
    public static int[] NUM_4 = {9000, 4500, 550, 600, 550, 550, 550, 600, 550, 550, 550, 600, 550, 550, 550, 1700, 550, 600, 500, 600, 550, 600, 550, 550, 600, 550, 550, 550, 600, 550, 550, 1700, 550, 550, 550, 600, 550, 600, 500, 1700, 550, 600, 550, 600, 500, 600, 550, 600, 550, 550, 550, 1700, 550, 1700, 550, 600, 500, 1750, 500, 1750, 500, 1750, 550, 1700, 550, 1700, 500};
    public static int[] NUM_5 = {9000, 4500, 550, 550, 550, 600, 550, 550, 600, 550, 550, 550, 550, 600, 550, 1700, 550, 550, 550, 600, 550, 550, 550, 600, 550, 600, 550, 550, 550, 600, 500, 1750, 550, 550, 550, 1700, 550, 600, 500, 1750, 500, 600, 550, 600, 550, 550, 550, 600, 550, 550, 550, 600, 500, 1750, 500, 600, 550, 1700, 550, 1700, 550, 1700, 550, 1700, 550, 1700, 550};
    public static int[] NUM_6 = {9000, 4500, 550, 600, 550, 550, 550, 600, 500, 600, 550, 600, 500, 600, 550, 1700, 550, 600, 500, 600, 550, 600, 500, 600, 550, 600, 550, 550, 550, 600, 500, 1750, 550, 550, 550, 600, 550, 1700, 550, 1700, 550, 550, 550, 600, 550, 550, 600, 550, 550, 550, 550, 1700, 550, 600, 550, 550, 550, 1700, 550, 1700, 550, 1700, 550, 1700, 550, 1700, 550};
    public static int[] NUM_7 = {9000, 4500, 550, 600, 550, 550, 550, 600, 500, 600, 550, 600, 550, 550, 550, 1700, 550, 600, 550, 550, 550, 600, 550, 550, 600, 550, 550, 550, 550, 600, 550, 1700, 550, 600, 500, 1750, 550, 1700, 500, 1700, 600, 550, 550, 600, 500, 600, 550, 600, 500, 600, 550, 600, 500, 600, 550, 600, 550, 1700, 550, 1700, 550, 1700, 550, 1700, 550, 1700, 550};
    public static int[] NUM_8 = {9050, 4500, 550, 550, 550, 600, 500, 600, 550, 600, 500, 600, 550, 600, 500, 1750, 550, 550, 550, 600, 500, 600, 550, 600, 550, 550, 550, 600, 550, 550, 550, 1700, 600, 550, 550, 600, 500, 600, 550, 600, 500, 1750, 550, 550, 550, 600, 550, 550, 550, 600, 550, 1700, 550, 1550, 700, 1700, 550, 550, 550, 1700, 550, 1700, 550, 1700, 550, 1700, 550};
    public static int[] NUM_9 = {9000, 4500, 550, 550, 550, 600, 550, 550, 550, 600, 550, 550, 550, 600, 550, 1700, 550, 550, 550, 600, 550, 550, 600, 550, 550, 550, 600, 550, 550, 550, 550, 1700, 600, 550, 550, 1700, 550, 550, 550, 600, 550, 1700, 550, 600, 500, 600, 550, 600, 550, 550, 550, 600, 500, 1750, 550, 1700, 500, 600, 550, 1700, 550, 1700, 550, 1700, 550, 1700, 550};
    public static int[] NUM_0 = {9050, 4500, 550, 600, 550, 550, 550, 600, 500, 600, 550, 600, 500, 600, 550, 1700, 550, 600, 550, 550, 600, 550, 550, 550, 600, 550, 550, 600, 550, 550, 550, 1700, 550, 600, 500, 600, 600, 550, 500, 600, 550, 600, 550, 550, 600, 550, 550, 550, 600, 550, 550, 1700, 550, 1700, 550, 1700, 550, 1700, 550, 1700, 550, 1700, 550, 1700, 550, 1700, 550};
    public static int[] RESET = {9050, 4500, 550, 550, 600, 550, 550, 600, 500, 600, 550, 600, 550, 550, 550, 1700, 550, 600, 550, 550, 550, 600, 550, 550, 550, 600, 550, 550, 600, 550, 550, 1700, 550, 600, 550, 1700, 550, 1700, 550, 1700, 550, 1700, 550, 550, 550, 600, 500, 600, 550, 600, 550, 550, 600, 550, 550, 550, 600, 550, 550, 1700, 550, 1700, 550, 1700, 550, 1700, 550};
    public static int[] SEARCH = {9000, 4500, 550, 600, 550, 550, 550, 600, 500, 600, 550, 600, 550, 550, 550, 1700, 550, 600, 550, 550, 550, 600, 550, 550, 600, 550, 550, 550, 600, 550, 550, 1700, 550, 550, 550, 600, 550, 600, 550, 1700, 550, 1700, 550, 550, 550, 600, 550, 550, 550, 600, 550, 1700, 550, 1700, 550, 550, 550, 600, 500, 1750, 550, 1700, 550, 1700, 550, 1700, 550};
}

package com.zatackcoder.clarionremotejm8201;

public final class Btn {

public static int[] POWER = {9000, 4450, 550, 600, 500, 600, 550, 600, 550, 550, 550, 600, 500, 600, 550, 1700, 550, 550, 550, 600, 550, 550, 550, 600, 550, 550, 550, 600, 550, 550, 550, 1700, 550, 600, 550, 1700, 550, 550, 550, 1700, 550, 1700, 550, 550, 550, 600, 550, 1700, 550, 550, 550, 600, 550, 1650, 600, 550, 550, 550, 600, 1650, 550, 1700, 550, 600, 550, 1700, 550};

public static int[] INPUT = {9050, 4450, 600, 550, 550, 550, 600, 550, 550, 550, 600, 550, 550, 550, 600, 1650, 550, 600, 550, 550, 550, 600, 500, 600, 550, 600, 550, 550, 550, 600, 550, 1700, 550, 550, 550, 1700, 550, 1700, 550, 550, 600, 550, 550, 550, 550, 600, 550, 1700, 550, 550, 550, 600, 550, 550, 550, 1700, 550, 1700, 550, 1700, 550, 1700, 550, 550, 550, 1700, 550};

public static int[] USB = {8950, 4500, 600, 550, 550, 550, 550, 600, 550, 550, 550, 600, 500, 600, 550, 1700, 550, 600, 550, 550, 550, 600, 550, 550, 550, 600, 550, 550, 550, 600, 550, 1650, 600, 550, 550, 1700, 550, 1700, 550, 550, 550, 600, 500, 1700, 600, 550, 550, 1600, 650, 550, 550, 600, 550, 550, 600, 1650, 550, 1700, 550, 600, 550, 1700, 550, 550, 550, 1700, 550};

public static int[] SD = {9000, 4450, 600, 550, 550, 550, 550, 600, 550, 550, 550, 600, 550, 550, 550, 1700, 550, 600, 500, 600, 550, 600, 500, 600, 550, 600, 550, 550, 550, 600, 500, 1750, 550, 550, 550, 1700, 550, 1700, 550, 550, 550, 1700, 550, 1700, 550, 600, 550, 1700, 550, 550, 550, 550, 550, 600, 550, 1700, 550, 550, 550, 600, 550, 1700, 550, 550, 550, 1700, 550};

public static int[] FM = {8950, 4500, 550, 600, 500, 600, 550, 600, 550, 550, 550, 600, 550, 550, 550, 1700, 550, 600, 550, 550, 550, 600, 550, 550, 550, 600, 500, 600, 550, 550, 600, 1650, 600, 550, 550, 1700, 550, 1700, 550, 1700, 500, 600, 550, 1700, 550, 550, 550, 1700, 550, 600, 550, 550, 550, 600, 550, 550, 550, 1700, 550, 600, 550, 1700, 550, 550, 550, 1700, 550};

public static int[] AUX = {9000, 4500, 550, 550, 550, 600, 550, 550, 550, 600, 500, 600, 550, 600, 550, 1650, 550, 600, 550, 550, 600, 550, 550, 550, 550, 600, 550, 550, 600, 550, 550, 1700, 550, 550, 550, 600, 500, 600, 550, 1700, 550, 600, 550, 1700, 500, 600, 550, 1700, 550, 550, 550, 1700, 550, 1700, 550, 600, 500, 1750, 550, 550, 550, 1700, 550, 550, 550, 1700, 600};

public static int[] TREBLE_MINUS = {9000, 4500, 550, 550, 550, 600, 500, 600, 550, 600, 500, 600, 550, 600, 550, 1700, 550, 550, 550, 550, 550, 600, 550, 550, 550, 600, 550, 550, 600, 550, 550, 1700, 550, 550, 550, 600, 550, 550, 550, 1700, 550, 1700, 550, 1700, 550, 550, 550, 600, 550, 550, 550, 1700, 550, 1700, 550, 600, 500, 600, 550, 600, 500, 1750, 500, 1750, 500, 1700, 600};

public static int[] TREBLE_PLUS = {8950, 4500, 600, 550, 550, 550, 600, 550, 550, 550, 600, 550, 500, 600, 550, 1700, 550, 600, 500, 600, 550, 600, 500, 600, 550, 600, 500, 600, 550, 600, 500, 1750, 500, 600, 550, 600, 500, 1700, 600, 1650, 550, 1700, 550, 1700, 550, 600, 500, 600, 550, 600, 500, 1750, 550, 550, 550, 550, 550, 600, 550, 550, 600, 1650, 600, 1650, 550, 1700, 550};

public static int[] BASS_MINUS = {9000, 4500, 550, 550, 550, 600, 550, 550, 550, 600, 550, 550, 550, 600, 550, 1700, 550, 550, 550, 600, 550, 550, 550, 600, 500, 600, 550, 600, 550, 550, 550, 1700, 550, 550, 600, 1650, 550, 1700, 550, 1700, 550, 1700, 550, 1700, 550, 600, 550, 550, 550, 550, 600, 550, 550, 550, 600, 550, 550, 550, 600, 550, 550, 1700, 550, 1700, 550, 1700, 550};

public static int[] BASS_PLUS = {9000, 4500, 550, 550, 550, 600, 550, 550, 550, 600, 550, 550, 550, 600, 550, 1700, 550, 550, 550, 600, 500, 600, 550, 600, 550, 550, 550, 550, 600, 550, 550, 1700, 550, 550, 550, 1700, 550, 600, 550, 1700, 550, 550, 550, 1700, 550, 600, 500, 600, 550, 600, 500, 600, 550, 1700, 550, 550, 550, 1700, 550, 600, 500, 1750, 550, 1700, 550, 1650, 600};

public static int[] PREVIOUS = {9000, 4500, 550, 550, 550, 550, 600, 550, 550, 550, 550, 600, 550, 550, 550, 1700, 550, 600, 550, 550, 550, 600, 550, 550, 550, 600, 500, 600, 550, 550, 600, 1650, 600, 550, 550, 1700, 550, 1700, 550, 550, 550, 1700, 550, 550, 550, 600, 550, 550, 600, 550, 550, 550, 550, 600, 550, 1700, 550, 550, 550, 1700, 550, 1700, 550, 1700, 500, 1750, 550};

public static int[] NEXT = {9000, 4500, 550, 550, 550, 600, 500, 600, 550, 600, 550, 550, 550, 600, 550, 1700, 550, 550, 550, 550, 550, 600, 550, 550, 600, 550, 550, 550, 600, 550, 550, 1700, 550, 550, 550, 600, 500, 1750, 550, 1700, 550, 1650, 600, 550, 550, 550, 550, 600, 550, 550, 550, 1700, 550, 600, 500, 600, 550, 600, 550, 1650, 600, 1650, 550, 1700, 550, 1700, 550};

public static int[] VOL_MINUS = {8950, 4500, 550, 550, 600, 550, 550, 550, 600, 550, 550, 550, 550, 600, 550, 1700, 550, 550, 550, 600, 550, 550, 550, 600, 500, 600, 550, 600, 550, 550, 550, 1700, 550, 550, 550, 600, 550, 550, 550, 600, 500, 600, 550, 1700, 550, 600, 550, 550, 550, 600, 500, 1700, 600, 1650, 550, 1650, 600, 1700, 550, 600, 550, 1650, 600, 1650, 600, 1650, 550};

public static int[] VOL_PLUS = {8950, 4500, 550, 600, 500, 600, 550, 550, 550, 600, 550, 550, 600, 550, 550, 1700, 550, 550, 550, 600, 500, 600, 550, 600, 500, 600, 550, 600, 550, 550, 550, 1700, 550, 550, 550, 1700, 550, 600, 500, 600, 550, 600, 550, 1700, 550, 550, 550, 600, 500, 600, 550, 600, 500, 1700, 550, 1700, 600, 1650, 550, 600, 550, 1700, 500, 1700, 600, 1650, 600};

public static int[] MUTE = {9000, 4450, 550, 600, 500, 600, 550, 600, 550, 550, 550, 600, 500, 600, 550, 1700, 550, 550, 550, 600, 550, 550, 550, 600, 550, 550, 550, 600, 500, 600, 550, 1700, 550, 550, 550, 1700, 550, 600, 550, 1700, 550, 1700, 550, 550, 550, 600, 550, 550, 550, 550, 550, 600, 550, 1700, 550, 550, 550, 600, 550, 1700, 550, 1700, 550, 1650, 550, 1700, 550};

public static int[] ST_MINUS = {8950, 4500, 550, 600, 550, 550, 550, 550, 550, 600, 550, 550, 550, 600, 550, 1700, 500, 600, 550, 600, 500, 600, 550, 600, 550, 550, 550, 600, 500, 600, 550, 1700, 550, 550, 550, 600, 550, 1700, 550, 550, 550, 1700, 550, 1700, 550, 600, 500, 600, 550, 550, 600, 1650, 600, 550, 550, 1700, 550, 550, 550, 600, 550, 1700, 550, 1650, 600, 1650, 550};

public static int[] ST_PLUS = {8950, 4500, 550, 600, 500, 600, 600, 550, 500, 600, 550, 600, 550, 550, 550, 1700, 550, 600, 550, 550, 550, 600, 550, 550, 550, 550, 600, 550, 550, 550, 600, 1650, 550, 600, 550, 550, 600, 1650, 600, 550, 500, 600, 550, 600, 500, 600, 550, 1700, 550, 550, 550, 1700, 550, 600, 500, 1750, 550, 1700, 550, 1700, 500, 1700, 600, 550, 550, 1700, 550};

public static int[] FT_MINUS = {9000, 4500, 550, 600, 550, 550, 550, 600, 550, 550, 550, 600, 550, 550, 550, 1700, 550, 600, 500, 600, 550, 600, 550, 550, 550, 600, 500, 600, 550, 600, 500, 1750, 550, 550, 550, 1700, 550, 550, 600, 1650, 600, 550, 550, 550, 600, 550, 550, 1700, 550, 550, 550, 600, 550, 1700, 550, 550, 550, 1700, 550, 1700, 550, 1700, 550, 600, 550, 1700, 550};

public static int[] FT_PLUS = {9000, 4500, 550, 550, 550, 600, 500, 600, 550, 600, 550, 550, 550, 600, 550, 1700, 550, 550, 550, 600, 500, 600, 550, 600, 550, 550, 550, 600, 550, 550, 550, 1700, 550, 600, 550, 550, 550, 600, 550, 1700, 550, 550, 550, 600, 550, 550, 550, 1700, 550, 600, 550, 1700, 550, 1650, 600, 550, 550, 1700, 550, 1700, 550, 1650, 600, 550, 550, 1700, 550};

public static int[] NUM_1 = {9000, 4500, 550, 600, 500, 600, 550, 600, 500, 600, 550, 600, 500, 600, 550, 1700, 550, 600, 500, 600, 550, 600, 500, 600, 550, 600, 500, 600, 550, 600, 500, 1750, 550, 550, 550, 1700, 550, 600, 500, 600, 550, 600, 500, 600, 550, 600, 500, 600, 550, 600, 500, 600, 600, 1650, 550, 1700, 550, 1700, 550, 1700, 550, 1700, 550, 1700, 550, 1700, 550};

public static int[] NUM_2 = {9000, 4500, 600, 550, 550, 550, 550, 600, 550, 550, 600, 550, 550, 600, 500, 1700, 600, 550, 550, 550, 550, 600, 550, 600, 500, 600, 550, 600, 550, 550, 550, 1700, 550, 600, 500, 600, 550, 1700, 550, 600, 550, 550, 550, 600, 500, 600, 550, 600, 550, 550, 550, 1700, 550, 600, 500, 1750, 550, 1700, 500, 1750, 500, 1750, 500, 1700, 550, 1700, 550};

public static int[] NUM_3 = {9050, 4500, 550, 550, 550, 600, 500, 600, 550, 600, 500, 600, 550, 600, 500, 1750, 500, 600, 550, 600, 500, 600, 550, 600, 500, 600, 550, 600, 500, 600, 550, 1700, 550, 600, 500, 1750, 550, 1700, 500, 600, 550, 600, 500, 600, 550, 600, 500, 600, 550, 600, 500, 600, 550, 600, 500, 1750, 500, 1750, 550, 1700, 500, 1750, 500, 1750, 500, 1750, 500};

public static int[] NUM_4 = {9000, 4500, 550, 600, 550, 550, 550, 600, 550, 550, 550, 600, 550, 550, 550, 1700, 550, 600, 500, 600, 550, 600, 550, 550, 600, 550, 550, 550, 600, 550, 550, 1700, 550, 550, 550, 600, 550, 600, 500, 1700, 550, 600, 550, 600, 500, 600, 550, 600, 550, 550, 550, 1700, 550, 1700, 550, 600, 500, 1750, 500, 1750, 500, 1750, 550, 1700, 550, 1700, 500};

public static int[] NUM_5 = {9000, 4500, 550, 550, 550, 600, 550, 550, 600, 550, 550, 550, 550, 600, 550, 1700, 550, 550, 550, 600, 550, 550, 550, 600, 550, 600, 550, 550, 550, 600, 500, 1750, 550, 550, 550, 1700, 550, 600, 500, 1750, 500, 600, 550, 600, 550, 550, 550, 600, 550, 550, 550, 600, 500, 1750, 500, 600, 550, 1700, 550, 1700, 550, 1700, 550, 1700, 550, 1700, 550};

public static int[] NUM_6 = {9000, 4500, 550, 600, 550, 550, 550, 600, 500, 600, 550, 600, 500, 600, 550, 1700, 550, 600, 500, 600, 550, 600, 500, 600, 550, 600, 550, 550, 550, 600, 500, 1750, 550, 550, 550, 600, 550, 1700, 550, 1700, 550, 550, 550, 600, 550, 550, 600, 550, 550, 550, 550, 1700, 550, 600, 550, 550, 550, 1700, 550, 1700, 550, 1700, 550, 1700, 550, 1700, 550};

public static int[] NUM_7 = {9000, 4500, 550, 600, 550, 550, 550, 600, 500, 600, 550, 600, 550, 550, 550, 1700, 550, 600, 550, 550, 550, 600, 550, 550, 600, 550, 550, 550, 550, 600, 550, 1700, 550, 600, 500, 1750, 550, 1700, 500, 1700, 600, 550, 550, 600, 500, 600, 550, 600, 500, 600, 550, 600, 500, 600, 550, 600, 550, 1700, 550, 1700, 550, 1700, 550, 1700, 550, 1700, 550};

public static int[] NUM_8 = {9050, 4500, 550, 550, 550, 600, 500, 600, 550, 600, 500, 600, 550, 600, 500, 1750, 550, 550, 550, 600, 500, 600, 550, 600, 550, 550, 550, 600, 550, 550, 550, 1700, 600, 550, 550, 600, 500, 600, 550, 600, 500, 1750, 550, 550, 550, 600, 550, 550, 550, 600, 550, 1700, 550, 1550, 700, 1700, 550, 550, 550, 1700, 550, 1700, 550, 1700, 550, 1700, 550};

public static int[] NUM_9 = {9000, 4500, 550, 550, 550, 600, 550, 550, 550, 600, 550, 550, 550, 600, 550, 1700, 550, 550, 550, 600, 550, 550, 600, 550, 550, 550, 600, 550, 550, 550, 550, 1700, 600, 550, 550, 1700, 550, 550, 550, 600, 550, 1700, 550, 600, 500, 600, 550, 600, 550, 550, 550, 600, 500, 1750, 550, 1700, 500, 600, 550, 1700, 550, 1700, 550, 1700, 550, 1700, 550};

public static int[] NUM_0 = {9050, 4500, 550, 600, 550, 550, 550, 600, 500, 600, 550, 600, 500, 600, 550, 1700, 550, 600, 550, 550, 600, 550, 550, 550, 600, 550, 550, 600, 550, 550, 550, 1700, 550, 600, 500, 600, 600, 550, 500, 600, 550, 600, 550, 550, 600, 550, 550, 550, 600, 550, 550, 1700, 550, 1700, 550, 1700, 550, 1700, 550, 1700, 550, 1700, 550, 1700, 550, 1700, 550};

public static int[] RESET = {9050, 4500, 550, 550, 600, 550, 550, 600, 500, 600, 550, 600, 550, 550, 550, 1700, 550, 600, 550, 550, 550, 600, 550, 550, 550, 600, 550, 550, 600, 550, 550, 1700, 550, 600, 550, 1700, 550, 1700, 550, 1700, 550, 1700, 550, 550, 550, 600, 500, 600, 550, 600, 550, 550, 600, 550, 550, 550, 600, 550, 550, 1700, 550, 1700, 550, 1700, 550, 1700, 550};

public static int[] SEARCH = {9000, 4500, 550, 600, 550, 550, 550, 600, 500, 600, 550, 600, 550, 550, 550, 1700, 550, 600, 550, 550, 550, 600, 550, 550, 600, 550, 550, 550, 600, 550, 550, 1700, 550, 550, 550, 600, 550, 600, 550, 1700, 550, 1700, 550, 550, 550, 600, 550, 550, 550, 600, 550, 1700, 550, 1700, 550, 550, 550, 600, 500, 1750, 550, 1700, 550, 1700, 550, 1700, 550};

}

These button codes/patten I have extracted from actuall remote by the help of a shopkeeper using Arduino Uno and Infrared Sensor.

styles.xml

<resources>

    <!-- Base application theme. -->
    <style name="AppTheme" parent="Theme.AppCompat.Light.NoActionBar">
        <!-- Customize your theme here. -->
        <item name="colorPrimary">@color/colorPrimary</item>
        <item name="colorPrimaryDark">@color/colorPrimaryDark</item>
        <item name="colorAccent">@color/colorAccent</item>
    </style>

</resources>

<item name="colorPrimary">@color/colorPrimary</item>

<item name="colorPrimaryDark">@color/colorPrimaryDark</item>

<item name="colorAccent">@color/colorAccent</item>

</style>

</resources>

AndroidManifest.xml

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
    package="com.zatackcoder.clarionremotejm8201">

    <uses-permission android:name="android.permission.TRANSMIT_IR"/>

    <application
        android:allowBackup="true"
        android:icon="@mipmap/ic_launcher"
        android:label="@string/app_name"
        android:roundIcon="@mipmap/ic_launcher_round"
        android:supportsRtl="true"
        android:theme="@style/AppTheme">
        <activity android:name=".MainActivity">
            <intent-filter>
                <action android:name="android.intent.action.MAIN" />

                <category android:name="android.intent.category.LAUNCHER" />
            </intent-filter>
        </activity>
    </application>

</manifest>

<?xml version="1.0" encoding="utf-8"?>

<manifest xmlns:android="http://schemas.android.com/apk/res/android"

package="com.zatackcoder.clarionremotejm8201">

<uses-permission android:name="android.permission.TRANSMIT_IR"/>

<application

android:allowBackup="true"

android:icon="@mipmap/ic_launcher"

android:label="@string/app_name"

android:roundIcon="@mipmap/ic_launcher_round"

android:supportsRtl="true"

android:theme="@style/AppTheme">

<intent-filter>

</intent-filter>

</activity>

</application>

</manifest>

Screenshot

AndroidStudio Project Download

ClarionRemoteJM8201 AndroidStudio Project

1 file(s) 8.49 MB

Download

Thanks for Stoping by
If you find this helpful then please do share

Create Remote in Android using ConsumerIrManager

MainActivity.java

activity_main.xml

Btn.java

styles.xml

AndroidManifest.xml

Screenshot

AndroidStudio Project Download

ClarionRemoteJM8201 AndroidStudio Project

Comments

Leave a Reply Cancel reply
